UTEC Smart Dimmer Switch Wiring Diagram

Lama
Lama
  • Updated

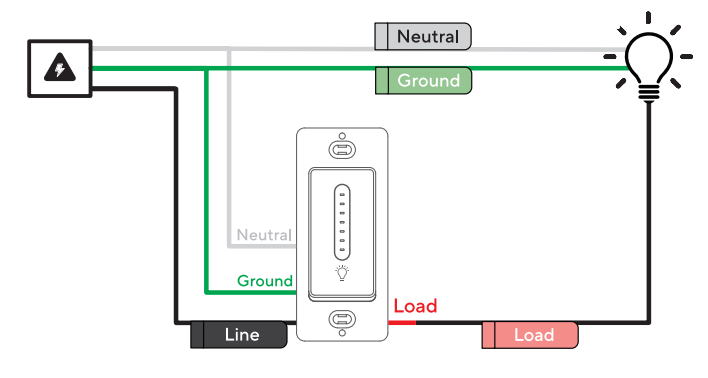

1. Single Pole (Only 1 Smart Switch)

single pole.png

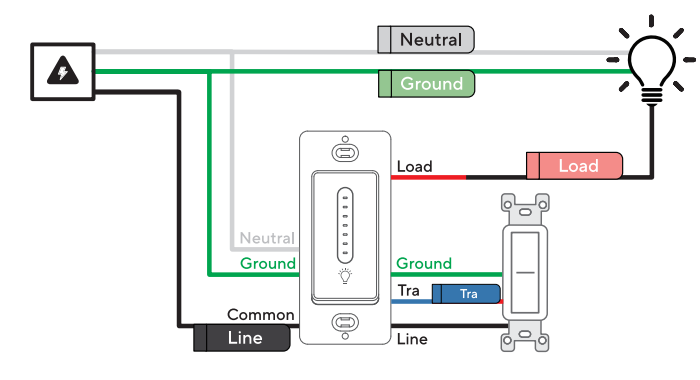

2. 3-Way Connection - Line Side (1 Smart Switch and 1 Dumb Switch)

3-way line side.png

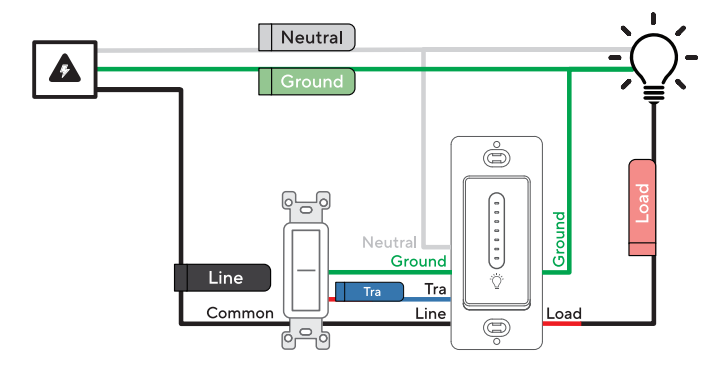

3. 3-Way Connection - Load Side (1 Smart Switch and 1 Dumb Switch)

3-way load side.png

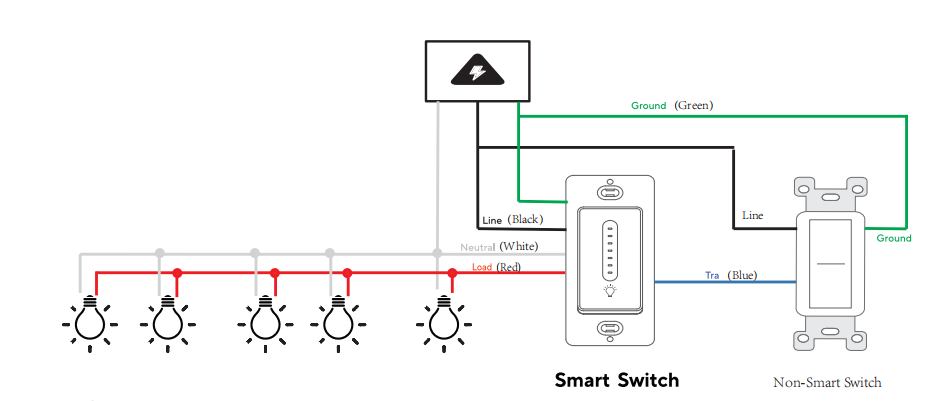

If you want to connect several bulbs in a 3-Way connection, please connect the bulbs in parallel.

3-way-2 - parallel.png
